Electronic fibers weave touchscreen into sleeve that survives machine washing

electronic fibers rotate cloth into a touchscreen

Researchers at the National University of Singapore (NUS) have developed a touchscreen unified immediately into a garment using digital fibers that merge light-emitting diodes (LEDs) and contact sensors. Led by Assistant Professor Tural Khudiyev, the squad integrates 54 of these fibers into a sleeve to create a elastic display that shows images and video, responds to digit presses, and connects wirelessly to digital devices. The investigation introduces a textile interface that retains the breathability and elasticity of mundane garments during withstanding device washing.

Unlike accepted wearable technology, which typically attaches a display or digital equipment to the body, the NUS team’s method builds display and contact functionality into the fibers themselves. Each thread contains interconnected microelectronic components inside a construction fair one millimeter thick, allowing the cloth to function as an interactive display without a rigid display panel. The prototype measures 168 by 105 millimeters, refreshes at 30 frames per second, and retains nearly unchanged display and contact achievement following 50 machine-washing cycles. The innovation could eventually authorize garments to function as an interface for digital information, ecological sensing, and health monitoring.

how to rotate a thread into a screen

Conventional digital circuits are designed on flat surfaces, anywhere components can be arranged and connected throughout two dimensions. A thread, by contrast, is narrow and cylindrical, leaving small area for the complex wiring needed to run a display. In command to conquer this limitation, the researchers developed an interconnection architecture that allows thousands of microelectronic devices to be connected alongside a sole fiber. The procedure starts alongside tiny, insulated wires. A laser exposes particular points alongside their surfaces, during controlled wetting directs molten solder to the designated locations, creating electric connections without joining unintended areas. Using this method, the squad unified additional than 5,000 chips through complete 20,000 electric connections.

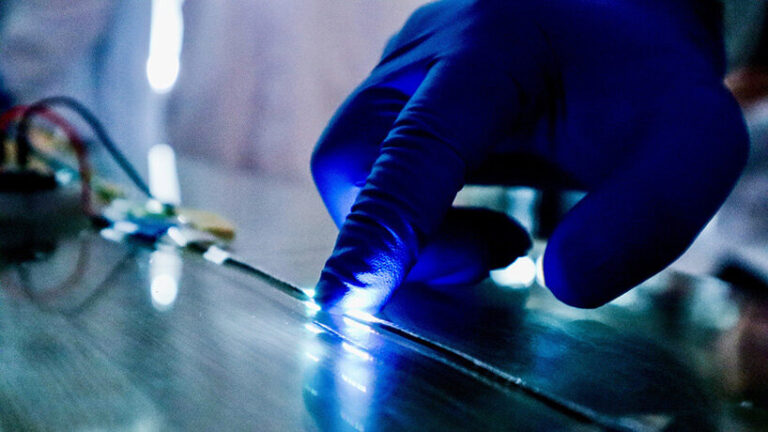

The interconnected digital LEDs are afterward unified into a multilayer fiber using a thermal example process. The resulting thread measures about one millimeter in diameter and 10 meters in length, alongside distinct layers liable for displaying images and detecting touch. A touch-sensitive tier sits below the LEDs. When person presses the fiber, the communication completes an electric circuit, allowing the scheme to acknowledge the location of the contact and illuminate the nearest pixel. Display and communication hence happen inside the identical thread, fairly than through distinct components attached to the fabric.

a equipment that behaves akin fabric

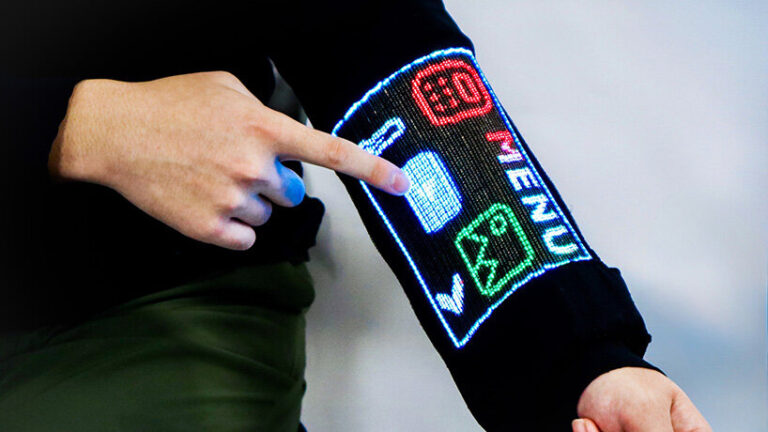

For the prototype, the squad threaded 54 pixel-bearing fibers into the forearm of a sleeve. Each fiber carries 96 LEDs, combining to form a 96-by-54-pixel display measuring 168 by 105 millimeters. The display refreshes at 30 frames per second and supports 8-bit color depth. The display is motionless humble in resolution compared alongside a smartphone, but its capabilities broaden beyond showing fixed images. It can perform video, display photographs, run a calculator, and function as a compass. Users can additionally obtain images complete Bluetooth, engage through sound commands, and rotate the display or modify its brightness automatically. The sleeve incorporates additional fibers that transport a microphone, a speaker, and sensors for movement, temperature, magnetic orientation, and ambient light. A temperature-sensing fiber positioned under the arm, for example, can measure build heat and display the study on the sleeve itself. Each pixel fiber additionally has its own authority channel, definition a error in one row does not necessarily interrupt the others. The scheme can enroll multiple touches simultaneously, bringing it nearer to the interactive behavior of a accepted touchscreen.

According to the researchers, the prototype retained nearly unchanged ray output and contact reply following 50 machine-washing cycles alongside detergent and 1,000 bends about a radius of five millimeters. The unified display is additionally reported to be as breathable as cotton, polyester, and denim, during remaining inside established skin-contact safety limits.

toward garments that senses and responds

Healthcare is one possible use identified by the team. Fibers armed alongside physiological sensors could collect data continuously and current it immediately on a garment, allowing wearers to admission measurements without consulting a distinct device. Combined alongside synthetic intelligence, the researchers suggest, specified systems could eventually assistance personalized monitoring and feedback. That possible remains a forthcoming direction fairly than a demonstrated capability of the current prototype. The team’s next steps contain improving resolution, integrating additional sensing functions, and exploring on-device AI. The broader conclusion is a change in how digital interfaces are designed. Smartphones and computers have acquainted us to accessing data through dedicated screens, during wearable innovation has mostly miniaturized existing devices or attached them to the body. The NUS investigation proposes a distinct association between electronics and mundane objects, one in which data can be displayed on the matter already in communication alongside the wearer.

project info:

research team: Tural Khudiyev, Heng Fu, Ziang Li, and Swetika Chaturvedi
institution:College of Design and Engineering, National University of Singapore (NUS)
lead researcher: Asst Prof. Tural Khudiyev, Department of Materials Science and Engineering
